Rear Heat Shield For Longitudinal Member, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the plenum chamber bulkhead. Refer to PLENUM CHAMBER BULKHEAD, REMOVING AND INSTALLING .
-- Remove the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
-- 6-cylinder TFSI engine: remove the catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING - 2.0L DMSA , CATALYTIC CONVERTER, REMOVING AND INSTALLING - 2.0L DPVA , CATALYTIC CONVERTER, REMOVING AND INSTALLING - 3.0L .
-- 6-cylinder TDI vehicles: remove the emissions control module. Refer to the appropriate Service Information. .

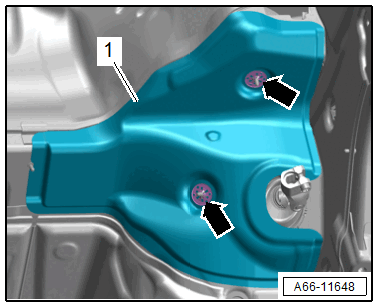

Right:
-- Remove the lock washers -arrows-.
-- Remove the heat shield -1-.

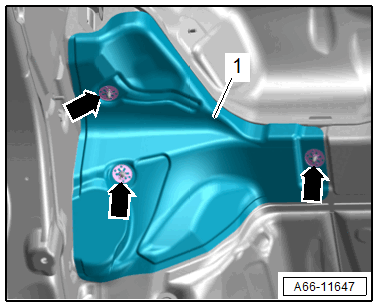

Left:
-- Remove the lock washers -arrows-.
-- Remove the heat shield -1-.
