Heat Shield For Rear Tunnel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the center underbody panel. Refer to CENTER UNDERBODY TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the driveshaft heat shield. Refer to DRIVESHAFT HEAT SHIELD, REMOVING AND INSTALLING .
-- Remove the driveshaft. Refer to the appropriate Service Information. .

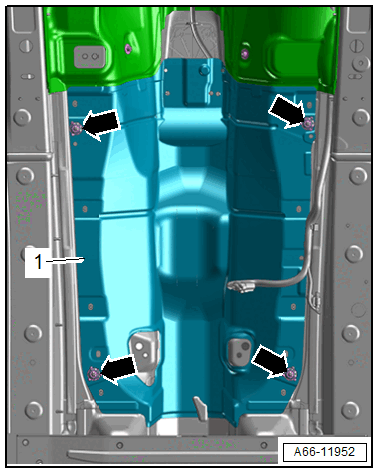

-- Remove the lock washers -arrows-.
-- Remove the heat shield -1-.
