Heat Shield For Front Tunnel, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the heat shield for the rear tunnel. Refer to HEAT SHIELD FOR REAR TUNNEL, REMOVING AND INSTALLING .
-- TFSI vehicles: remove the front exhaust pipe/front muffler. Refer to FRONT MUFFLER, REMOVING AND INSTALLING - 2.0L DMSA , FRONT MUFFLER, REMOVING AND INSTALLING - 2.0L DPVA , FRONT MUFFLER, REMOVING AND INSTALLING - 3.0L .
-- Remove the tunnel crossmember:
- Refer to OVERVIEW - ASSEMBLY MOUNTS - 2.0L DMSA , OVERVIEW - ASSEMBLY MOUNTS - 2.0L DPVA , .
- Refer to OVERVIEW - ASSEMBLY MOUNTS - 2.0L DMSA , OVERVIEW - ASSEMBLY MOUNTS - 2.0L DPVA , .
-- Lower the transmission straight until it does not contact the subframe crossbrace.

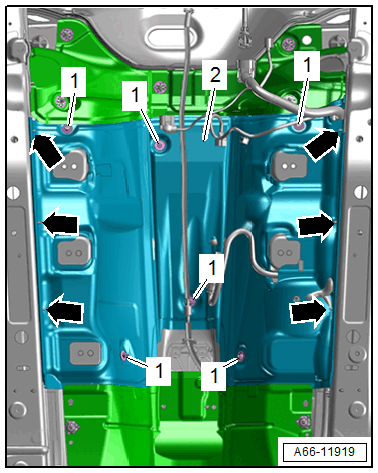

-- Remove the nuts -1-.
-- Remove the lock washers -arrows-.
-- Free up the heat shield -2- near the stud bolts.
-- Remove the bolts -arrows- and free up the parking lock emergency release cable -1- and remove.
-- Remove the heat shield.
