Striker, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

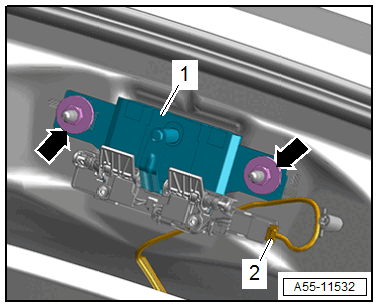

-- Disconnect the connector -2-.
-- Remove nuts -arrows- and remove the striker -1-.
-- If the striker is replaced, remove the Rear Lid -Closed- Sensor 1 - G525- /Rear Lid -Closed- Sensor 2 - G526-. Refer to OVERVIEW - BODY TAIL LAMPS .
