Closing Assist Release Cable, Removing And Installing, Security: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear lid lower trim panel and the latch cover. Refer to REAR LID LOWER TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the latch cover protecting plate OVERVIEW - REAR LID, SECURITY and the closing assist OVERVIEW - REAR LID, SECURITY.

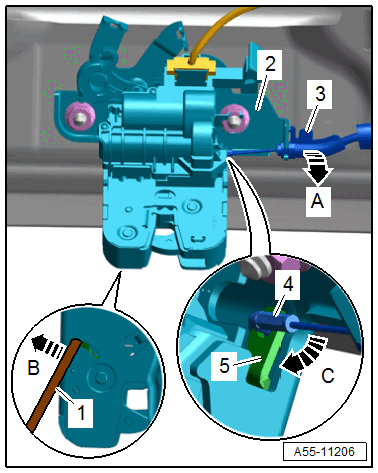

-- Turn the operating cable 90° in the -direction of arrow A- at the lever -3- and remove it from the support bracket for the latch -2-.

Courtesy of AUDI

-- Using a screwdriver -1-, secure the operating lever -5- on the opposite side -in the direction of -arrow B-.

-- Disengage the release cable nipple -4- from the release lever in the direction of -arrow C- and free up the release cable.

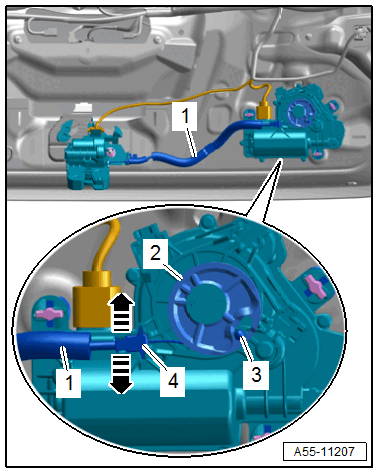

-- Disengage the support bracket -4- from the Rear Lid Closing Assist Motor -V382- by releasing the catches in the direction of -arrows-.

Courtesy of AUDI

-- Disengage the release cable nipple -3- at the actuator -2-.

-- Remove the release cable -1-.
