Latch Release Cable, Removing And Installing, LHD: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the vehicle electrical system control module bracket. Refer to COMPONENT LOCATION OVERVIEW - RELAY PANELS, FUSE PANELS AND E-BOXES .

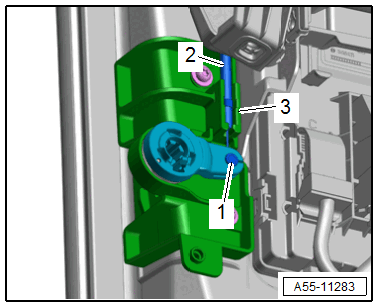

-- Loosen the release cable -2- from the support bracket -3- and disengage the release cable nipple -1-.

Courtesy of AUDI

-- Release the retainers in the direction of -arrows- and remove the housing cover -1-.

Courtesy of AUDI

-- Loosen the release cable -4- from the support bracket -3- and disengage the release cable nipple -2-.

-- Free up the release cable at the lock carrier and on the body.

-- Remove the grommet and remove the release cable outward.

-- Remove the latch. Refer to LATCH, REMOVING AND INSTALLING .

-- Release the retainers in the direction of -arrows- and remove the housing cover -1-.

Courtesy of AUDI

-- Loosen the release cable -4- from the support bracket -3- and disengage the release cable nipple -2-.

-- Release the catches and remove the coupling from the lock carrier.

-- Free up the release cables and guide them out of the lock carrier.
