Overview - Release in Vehicle Interior

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

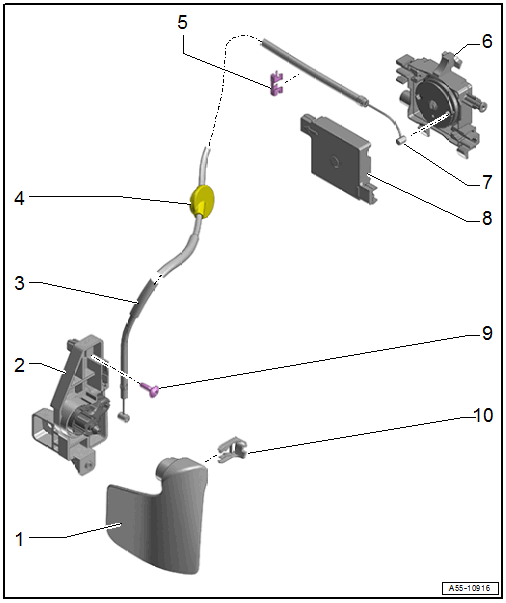

Fig 1: Exploded View Of Release Cable (In Vehicle Interior)

Courtesy of AUDI

Operating Lever
- For the latch
- RHD: is a mirror image
- Removing and Installing. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
Mounting Bracket
- For latch release lever
- RHD: is a mirror image
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - RELEASE CABLE .
- Removing and Installing. Refer to LATCH RELEASE LEVER MOUNTING BRACKET, REMOVING AND INSTALLING .
Release Cable
- For the latch
- RHD: is a mirror image
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - RELEASE CABLE .
- Removing and Installing. Refer to LATCH RELEASE CABLE, REMOVING AND INSTALLING, LHD .
Grommet
- RHD: is a mirror image
- Check for proper seating
Clip
- For securing the release cable
Release Cable Coupling
- For the latches
- Component Location Overview. Refer to COMPONENT LOCATION OVERVIEW - RELEASE CABLE .
- Removing and Installing. Refer to LATCH RELEASE CABLE, REMOVING AND INSTALLING, LHD .
Nipple
- Is inserted in the coupling guide element
Cap
Bolt
- Quantity: 2
- 2 Nm
Clip
