Latch Release Lever Mounting Bracket, Removing And Installing, LHD: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the latch release lever. Refer to LATCH RELEASE LEVER, REMOVING AND INSTALLING .
-- Remove the A-pillar lower trim panel. Refer to A-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

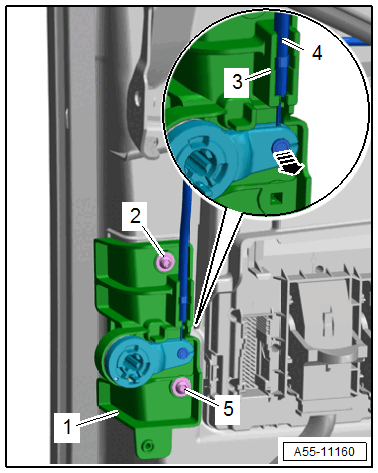

-- Loosen the release cable -4- from the support bracket -3- and disengage the release cable nipple in the direction of -arrow-.
-- Remove the bolts -2 and 5-.
-- Remove the mounting bracket -1-.
