Hinges, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
-- Install the hinge according the marking made during removal.
-- Adjust the hinge. Refer to SIDE, LENGTH AND HEIGHT ADJUSTMENT AT HINGE .
If the fender flange is being replaced the following adjustment should be performed:

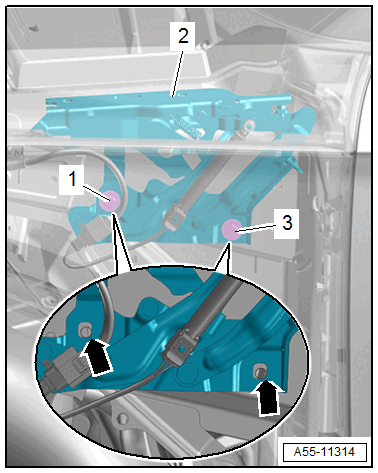

-- Place the hinge -2- on the fender flange.
- The threaded hole must be located on the rear lower edges -arrows- for this. This corresponds to the maximum distance of the hood to the fender, the door and the A-pillar.
-- Tighten the bolts -1 and 3- hand-tight.
-- Adjust the hinge. Refer to SIDE, LENGTH AND HEIGHT ADJUSTMENT AT HINGE .
- When opening and closing the hood or the front door pay attention to the clearance.
-- Tighten the bolts.
