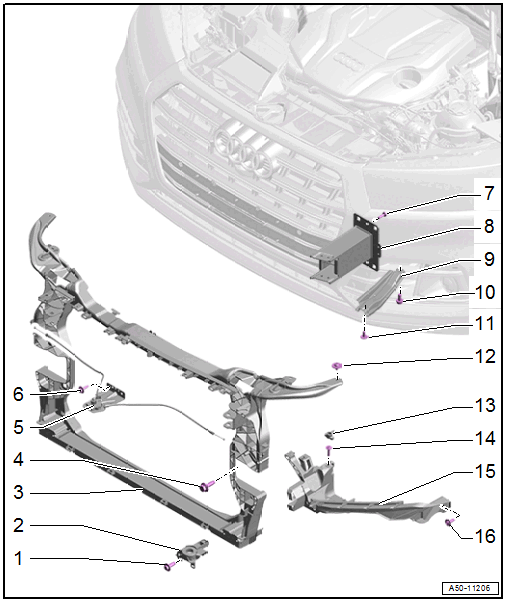

Overview - Lock Carrier
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- Quantity: 2
- Tightening specification. Refer to OVERVIEW - RADIATOR/RADIATOR FAN .
- Radiator Bracket
- Lock Carrier
- Removing and Installing. Refer to LOCK CARRIER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 4
- Tightening specification OVERVIEW - IMPACT MEMBER .
- Mounting Bracket with Release Cable
- For the hook release lever
- Overview. Refer to OVERVIEW - RELEASE CABLE .
- Bolt
- Quantity: 2
- Tightening specification. Refer to OVERVIEW - RELEASE CABLE .
- Bolt
- Quantity: 2
- 14 Nm
- Mount
- For impact member
- Lower Longitudinal Member
- Removing and Installing. Refer to LOWER LONGITUDINAL MEMBER, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Bolt
- 8 Nm
- Bolt
- 8 Nm
- Retainer
- For the adjusting screw
- Adjusting Screw
- For adjusting the bumper cover with the headlamp to the body contour
- Mount
- For headlamp
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - HEADLAMPS .
