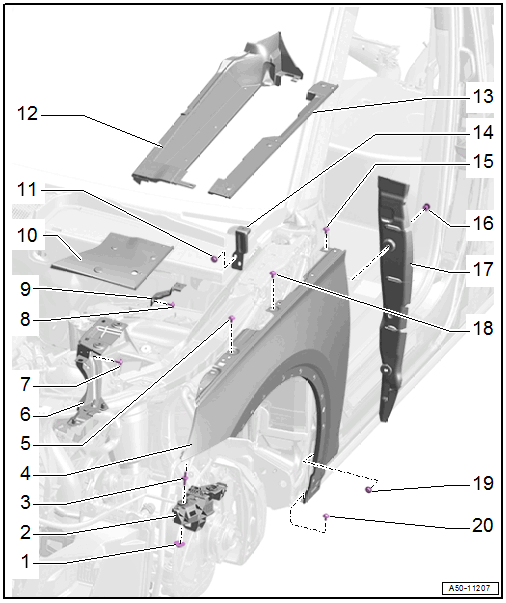

Overview - Fender
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Nut
- Quantity: 3
- 4 Nm
- Mount
- For the bumper cover
- For securing the headlamp mount
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Double Bolt
- Quantity: 2
- 8 Nm
- Fender
- Removing and Installing. Refer to FENDER, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 8 Nm
- Fender Brace
- Removing and Installing. Refer to FENDER BRACE, REMOVING AND INSTALLING .
- Bolt
- Quantity: 2
- 8 Nm
- Bolt
- 8 Nm
- Bracket
- Center
- Removing and Installing. Refer to CENTER FENDER BRACKET, REMOVING AND INSTALLING .
- Cover
- Front
- Removing and Installing. Refer to FRONT FENDER COVER, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Side Cover for Plenum Chamber Cover
- Overview. Refer to OVERVIEW - PLENUM CHAMBER COVER .
- Cover
- Rear
- Removing and Installing. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .
- Bracket
- Rear
- Removing and Installing. Refer to REAR FENDER BRACKET, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Expanding Rivet
- Quantity: 2
- End Panel
- Removing and Installing. Refer to END PANEL, REMOVING AND INSTALLING .
- Bolt
- 8 Nm
- Bolt
- Quantity: 3
- 8 Nm
- Bolt
- Quantity: 2
- 8 Nm
