Fender Brace, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Remove the rear cover. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .
-- Remove the bumper cover mount. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .

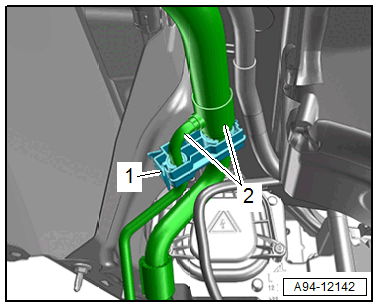

-- Left: open the bracket -1- and free up the refrigerant lines -2-.

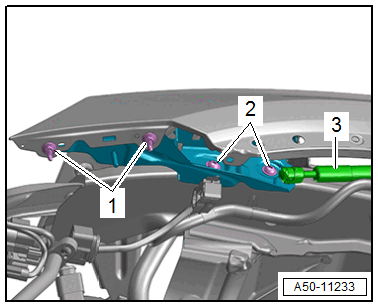

-- Remove the gas-filled strut -3- and support the hood. Refer to GAS-FILLED STRUT, REMOVING AND INSTALLING .
-- Remove the bolts -2- and double bolt -1-.

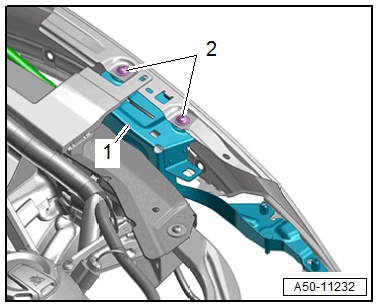

-- Remove the bolts -2-.
-- Remove the fender brace -1-.
