Plenum Chamber Side Cover, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear cover. Refer to REAR FENDER COVER, REMOVING AND INSTALLING .

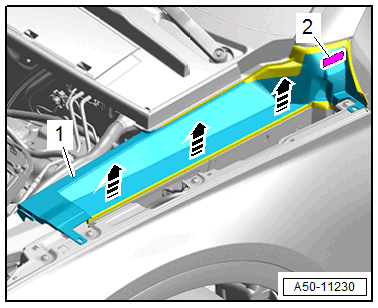

-- Use the Wiring Harness Repair Set - Hot Air Blower:VAS 1978/14A to warm up the cover -1- carefully near the A-pillar.
-- Pry out the cover in the direction of -arrows- and remove it carefully near the bonding -2-.
