Plenum Chamber Side Cover, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- The vehicle and the cover must be at room temperature.
- The adhesive surfaces must be free of dirt and grease.
-- Remove the adhesive residue from the body.
-- Clean the painted side of the adhesive surface with Cleaning Solution:D 009 401 04 and let dry.

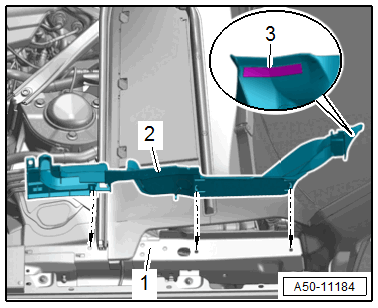

-- Position the cover -2- using the Christmas Tree™ fastener on the body -1- in the direction of -arrows- and press it on.
-- Remove the protective film from the adhesive tape -3- and press the cover onto the A-pillar.
