Wheel Bearing Unit, Removing And Installing, Fwd: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

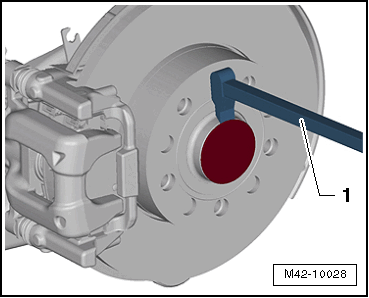

Fig 1: Removing Dust Cap (1 Of 2)

Courtesy of AUDI

-- Remove the brake shield. Refer to BRAKE SHIELD, REMOVING AND INSTALLING .

-- Loosen the cap by lightly tapping on the Puller - Grease Cap:VW 637/2 -1-.

-- Pry the cap with the Puller - Grease Cap:VW 637/2 -1-.

Fig 2: Removing Dust Cap (2 Of 2)

Courtesy of AUDI

CAUTION:

There is a risk of damaging the threads.

The bolt must not be loosened or tightened with an impact wrench.

-- Remove the nut/bolt located below and remove the wheel bearing from the axle stub.

Handling the wheel bearing. Refer to Figure.

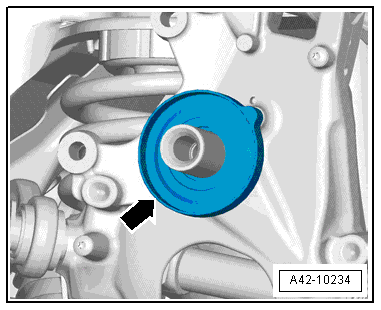

-- Remove the front seal -arrow- from the axle stub.

Fig 3: Front Seal

Courtesy of AUDI
