Wheel Bearing Unit, Removing And Installing, Fwd: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

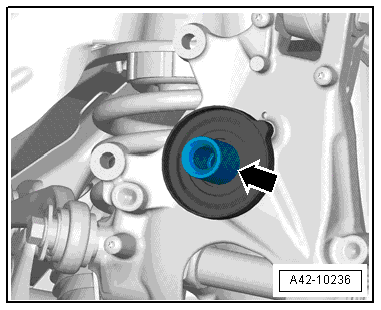

Fig 1: Front Seal And Grease Stub Axle

Courtesy of AUDI

Install in the reverse order of removal while noting the following:

Replace the cap after removing.

-- Clean the front seal.

-- Install the front seal and grease the axle stub -arrow- lightly with Grease.

-- Install the brake caliper and the brake rotor. Refer to BRAKE ROTOR, REMOVING AND INSTALLING .

Fig 2: Dust Cap

Courtesy of AUDI

CAUTION:

There is a risk of premature wear on the wheel bearing.

Use the tools pictured to avoid any moisture entering through a damaged dust cap.

-- Drive in the new cap all the way using the Camshaft Installer Kit - Sleeve :3241/4 -1-.

-- Install the brake shield. Refer to BRAKE SHIELD, REMOVING AND INSTALLING .
