Wheel Bearing Unit, Removing And Installing, AWD Vehicles: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Loosen the connection between the drive axle and wheel hub. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
-- Remove the brake rotor. Refer to BRAKE ROTOR, REMOVING AND INSTALLING .
-- Release the retainers in direction of -arrow- and remove the retaining pin -1-.
-- Remove the wind deflector -2- from the transverse link.

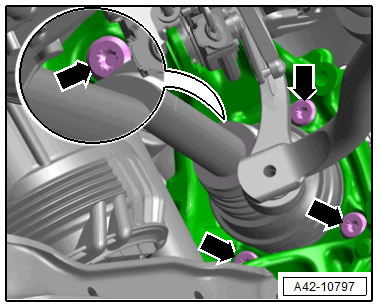

-- Remove the bolts -arrows- in stages, and remove the wheel bearing unit from the drive axle and the wheel bearing housing at the same time.
- Handling the wheel bearing. Refer to Figure.
