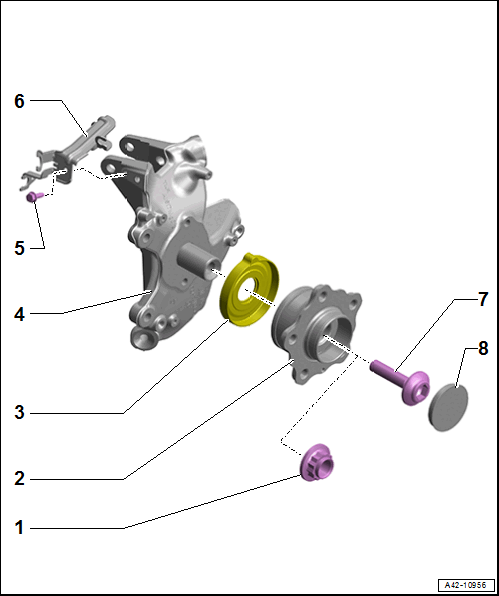

Overview - Wheel Bearing, Fwd Vehicles
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Collar Nut
- 70 Nm + 135°
- Replace after removing
- Depending on the version
- Wheel Bearing Unit
- Removing and installing. Refer to WHEEL BEARING UNIT, REMOVING AND INSTALLING, FWD .
- Handling the wheel bearing. Refer to Fig 2.
- Front Seal
- Wheel Bearing Housing
- There are different versions. Refer to the appropriate Electronic Parts Information for the allocation.
- Removing and installing. Refer to WHEEL BEARING HOUSING, REMOVING AND INSTALLING .
- Bolt
- 13 Nm
- Thread cutting
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- Bracket
- For wires
- Collar Bolt
- 200 Nm + 180°
- Replace after removing
- Depending on the version
- Cap
Wheel Bearing, Handling
CAUTION:
There is a risk of contaminating and damaging the seal.
- The wheel bearing -1- must face up in order to remove the wheel bearing unit.
- Always set the wheel bearing unit down on the wheel hub -2-.
- Never reach inside when lifting the wheel bearing.
- Hold the wheel bearing only on the outside.
