Spring, Removing And Installing, Coil Spring: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and workshop equipment required

Pneumatic/Hydraulic Foot Pump:VAS 6179

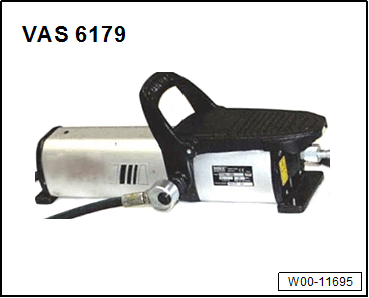

Fig 1: Identifying Pneumatic/Hydraulic Foot Pump VAS6179
Courtesy of AUDI
Spring Tensioning System:VAS 6274

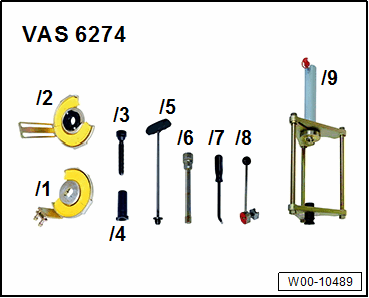

Fig 2: Identifying Spring Tensioning System VAS 6274
Courtesy of AUDI
130 mm long centering sleeve -item 5- from the Spring Tensioning System - Audi Set:VAS 6274/10

Fig 3: Identifying Tools From VAS 6274/10
Courtesy of AUDI
Supplement Set VAS 6274/12:VAS 6274/12 , not illustrated
