Stabilizer Bar, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
Before starting work:
-- Versions with coil springs: determine the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .
-- Versions with air suspension: determine the standard vehicle height. Refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION .
-- Remove the left and right underbody trim panels. Refer to OVERVIEW - UNDERBODY TRIM PANELS .

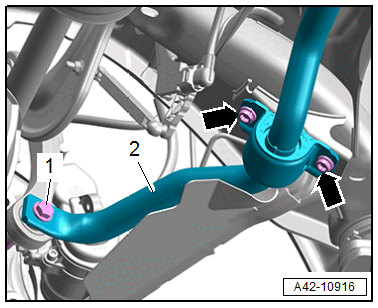

-- Remove the left and right bolts -arrows-.
-- Disconnect the left and right threaded connection -1- and remove the stabilizer bar -2-.
