Rear Bonded Rubber Bushing For Rear Final Drive, Removing And Installing: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

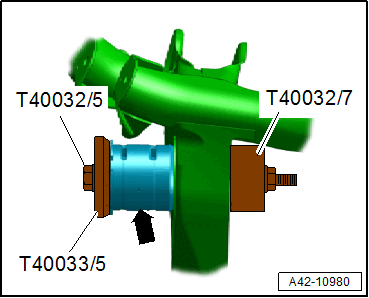

-- Install the Puller - Differential Bearing:T40032 and Rear Bushing Tool:T40033 on the bonded rubber bushing and on the subframe, as shown.

-- Install the bonded rubber bushing all the way in the subframe.

Further installation is performed in reverse order of the removal.
