Left And Right Rear Level Control System Sensor -G76- / -G77-, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

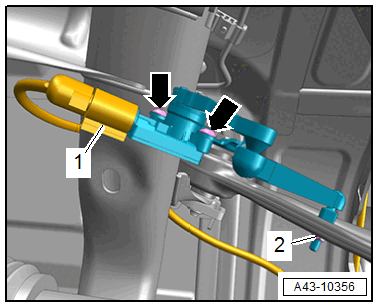

-- Right side of the vehicle: if installed, remove the right underbody trim panel. Refer to UNDERBODY TRIM PANEL .
-- Disconnect the connector -1-.
-- Remove the coupling rod nut -2-.
-- Remove the bolts -arrows-, and remove the level control system sensor.
