Drivetrain Control Module -J775-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center console. Refer to OVERVIEW - CENTER CONSOLE .

-- If installed, remove the air duct for the rear vent.

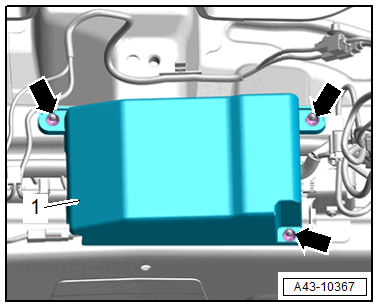

-- Using the carpet knife at the rear, carefully cut the carpet on the right and left side from the cover -1- until the bolts -arrows- are accessible.

Courtesy of AUDI

CAUTION:

Pay attention to the wires when cutting the carpet with the carpet knife.

-- Remove the nuts -arrows- and the cover -1-.

-- Remove the nuts -arrows- and remove the Drivetrain Control Module - J775- -1- -arrows-.

Fig 1: Electronic Damping Control Module -J250-

Courtesy of AUDI

-- Disconnect the connector -2-.
