Solenoid Valve Block, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .
-- Vent the system. Refer to AIR SUSPENSION SYSTEM, FILLING AND BLEEDING .
-- Switch off the ignition.
-- Equipment versions with 3.0L TFSI engine: remove the rear muffler. Refer to MUFFLER, REMOVING AND INSTALLING .
-- Remove the nuts -arrows-, and remove the covers -1 and 2- for the air supply unit.

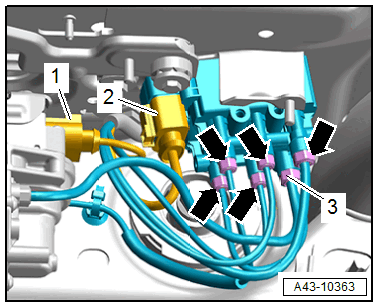

-- Disconnect the connectors -1 and 2- from the solenoid valve block and from the air supply unit, and free up the wire.
-- Remove the air lines -arrows- and -3- and protect them from debris immediately.

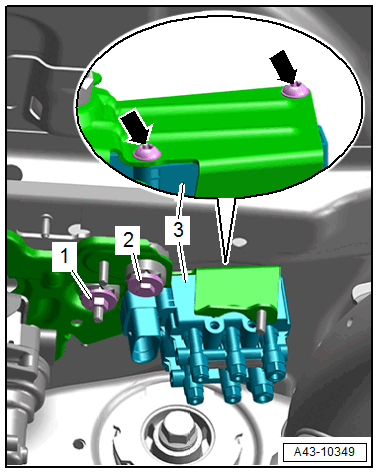

-- Remove the nut -1- and bolt -2-, and lower the bracket slightly.
-- Remove the bolts -arrows- and remove the solenoid valve block -3-.
