Level Control System Compressor Electronics -J1135-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.
-- Equipment versions with 3.0L TFSI engine: remove the rear muffler. Refer to MUFFLER, REMOVING AND INSTALLING .

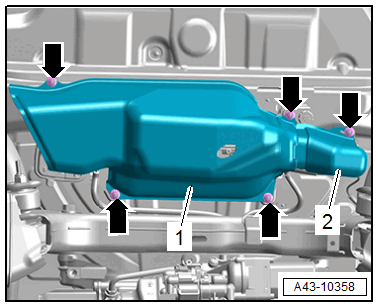

-- Remove the nuts -arrows-, and remove the covers -1 and 2- for the air supply unit.

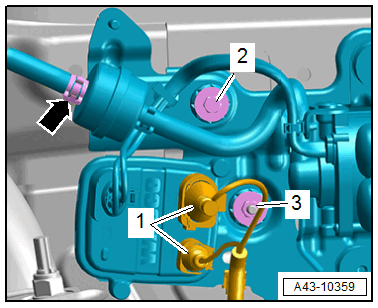

-- Disconnect the connectors -1- and free up the wires.
-- Loosen the hose clamp -arrow- and remove the hose from the filter.
-- Remove the nut -3- and bolt -2-, and lower the bracket slightly.

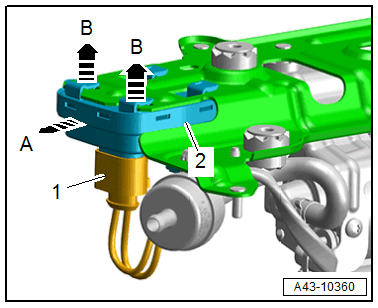

-- Disconnect the connectors -1-.
-- Carefully release the retainers in direction of -B arrows- and remove the control module -2- from the bracket in direction of -A arrows-.
