Wheel Bearing Unit, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
There is a risk of damaging or contaminating the wheel bearing.
- Handling the wheel bearing. Refer to OVERVIEW - WHEEL BEARING => The wheel bearing -1- must always face up in order to remove the wheel bearing unit. .
-- Loosen the connection between the drive axle and wheel hub. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
-- Remove the brake rotor. Refer to BRAKE ROTOR, REMOVING AND INSTALLING .

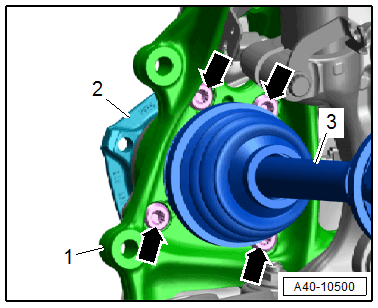

-- Remove the bolts -arrows-.
-- Remove the wheel hub -2- with the wheel bearing unit from the drive axle -3- and remove it from the wheel bearing housing -1-.
