Suspension Strut, Removing And Installing: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Removing

-- Remove the shock absorber fork. Refer to SHOCK ABSORBER FORK, REMOVING AND INSTALLING .

Versions with Air Suspension:

Courtesy of AUDI

NOTE:

Follow the guidelines for clean working conditions. Refer to GUIDELINES FOR CLEAN WORKING CONDITIONS .

Make sure that during the assembly work, no pressure points are created on the air suspension boot.

-- Remove the air line -2- on the residual pressure valve -3-. The air escapes from this.

-- Free up the air line on the bracket -1-.

NOTE:

The residual pressure valve cannot be removed separately.

-- Seal both connections.

Equipment Versions with Electronic Damping:

Courtesy of AUDI

-- Remove the cover -1-.

-- Disconnect the connector by releasing the locking ring -2- upward in direction of -arrows-, and remove the connector.

Continuation for All Vehicles:

Courtesy of AUDI

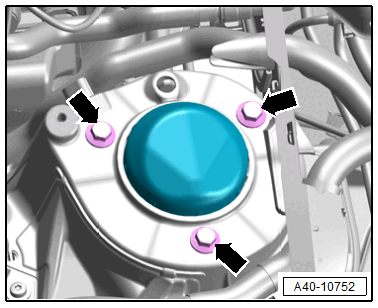

-- Remove the bolts -arrows-, and remove the suspension strut. Do not damage the CV boots on the steering, the drive axle as well as the boot.
