Shock Absorber Fork, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Before starting work:

-- Versions with coil springs: determine the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .

-- Versions with air suspension: determine the standard vehicle height. Refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION .

-- Remove the front wheel. Refer to WHEELS AND TIRES .

-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the subframe shield and move it to the side. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .

-- To protect the threads, remove the nut -arrow- from the tie rod end joint pin until it is flush with the joint pin threads.

Courtesy of AUDI

WARNING:

There is a risk of injury from falling components.

When pressing off, the tie rod end loosens abruptly from the wheel bearing housing. Place the Engine and Gearbox Jack:VAS 6931 for example underneath to secure.

CAUTION:

There is a risk of damaging the ball joint puller.

Make sure that both puller lever arms are parallel to each other when using maximum force.

-- Remove the tie rod end with the Ball Joint Splitter:VAS 251 805 from the wheel bearing housing.

-- Then remove the nut. Use a 6 mm inner hex socket to counterhold at the joint pin if necessary.

-- Remove the boot. Refer to BOOT, REMOVING AND INSTALLING .

-- Remove the nut -2- and free up the coupling rod for the vehicle level sensor.

Courtesy of AUDI

-- Disconnect the threaded connections -1 and 3- for the control arm.

NOTE:

To remove the bolt -1-, push the steering all the way to the left or right.

-- Remove the nut -3- and the bolt -1- for the coupling rod -2-.

Courtesy of AUDI

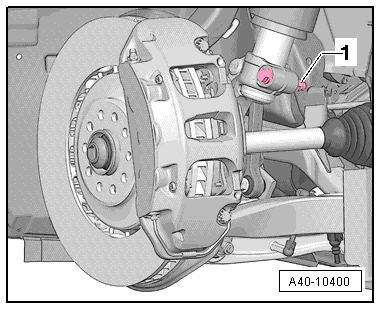

-- Disconnect the threaded connection -1-.

Fig 1: Identifying Bolt

Courtesy of AUDI

-- Insert the Spreader Tool:3424 into the slot in the shock absorber fork -arrow-.

Courtesy of AUDI

CAUTION:

There is a risk of damaging the ball joint.

The upper control arm ball joint must not be pushed past the maximum bending point.

-- Remove the shock absorber fork downward from the shock absorber tube and remove, while pushing the wheel bearing housing carefully downward.
