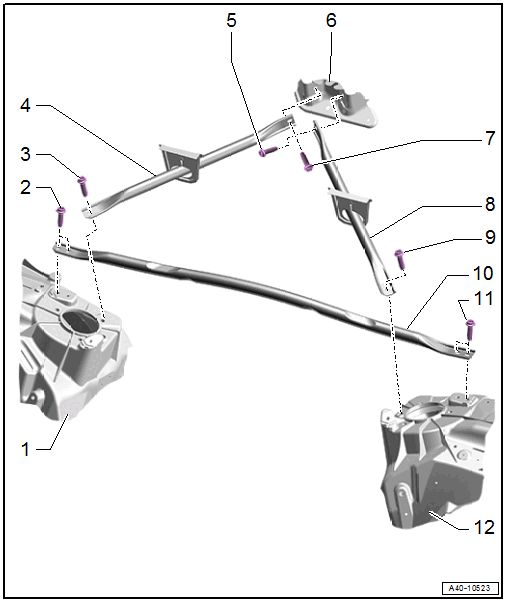

Overview - Tower Brace
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Right Suspension Strut Tower
- Bolt
- 20 Nm
- Bolt
- 20 Nm
- Right Tower Brace
- Removing and installing. Refer to TOWER BRACE, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Bulkhead
- Bolt
- 20 Nm
- Left Tower Brace
- Removing and installing. Refer to TOWER BRACE, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Front Tower Brace
- Removing and installing. Refer to TOWER BRACE, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- Left Suspension Strut Tower
