SUBFRAME Shield, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the drive axle cover. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Remove the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

Equipped on Some Models:

Fig 1: Identifying Nuts

Courtesy of AUDI

-- Disconnect the connector -3-.

-- Remove the bolt -1- and move the level control system sensor to the side.

Continuation for All:

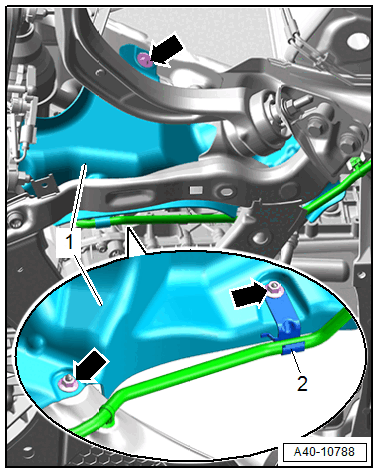

Courtesy of AUDI

-- Remove the threaded connections -arrows-.

-- If installed, free up the bracket -2-.

-- Carefully remove the shield -1- for the wheel housing.
