Guide Link, Removing And Installing: Removing
Before starting work:
-- Versions with coil springs: determine the curb weight position. Refer to WHEEL BEARING IN CURB WEIGHT POSITION, LIFTING VEHICLES WITH COIL SPRING .
-- Versions with air suspension: determine the standard vehicle height. Refer to WHEEL BEARING AT STANDARD VEHICLE HEIGHT, LIFTING VEHICLES WITH AIR SUSPENSION .
-- Remove the front wheel. Refer to WHEELS AND TIRES .
-- Remove the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
-- Remove the subframe shield and move it to the side. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .
-- To protect the threads, remove the nut -arrow- on the guide link joint pin until it is flush with the joint pin threads.
Risk of injury due to falling parts.
- When pressing off, the guide link loosens abruptly from the wheel bearing housing. Use, for example, the Engine and Gearbox Jack:VAS 6931 to secure.
There is a risk of damaging the ball joint puller.
- Make sure that both puller lever arms are parallel to each other when using maximum force.

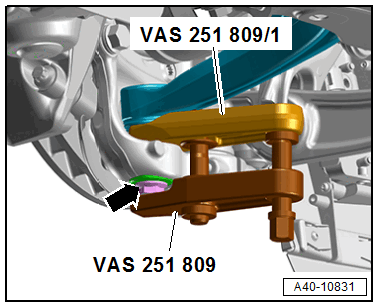

-- Remove the guide link joint pin from the conical seat using the Ball Joint Splitter:VAS 251 809 and Fork:VAS 251 809/1 . Do not damage the CV boot while doing this.
-- Remove the nut by counterholding at the ball joint with a TX40 socket if necessary.
-- Free up the guide link on the wheel bearing housing.
-- Remove the nut -3- and bolt -2-.
-- Remove the guide link -1-.
