Drive Axle, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Loosen the connection between the drive axle and wheel hub. Refer to DRIVE AXLE THREADED CONNECTION, LOOSENING AND TIGHTENING .
-- Remove the front wheel. Refer to WHEELS AND TIRES .
-- Left drive axle: remove the subframe shield. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .
-- Right drive axle: remove the subframe shield and move it to the side. Refer to SUBFRAME SHIELD, REMOVING AND INSTALLING .
-- Remove the drive axle cover. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

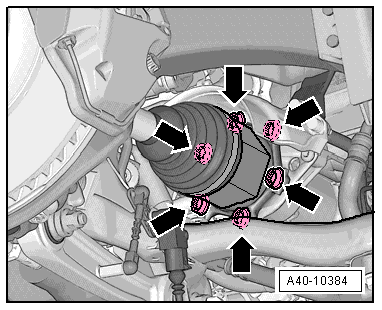

-- Remove the bolts -arrows- that connect the drive axle and flange shaft.
-- Remove the drive axle, and do not damage the CV boot and the drive axle coating while doing so.
