Muffler, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ5 and 2023 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Loosen the clamping sleeves -1 and 2- and slide them toward the rear.

Fig 1: Clamps Vehicles With Dual Exhaust System

Courtesy of AUDI

-- Slightly lower the front muffler and remove the clamping sleeves.

-- Disconnect the left connector -2- for the exhaust door control unit -1-.

Courtesy of AUDI

WARNING:

Risk of accident due to the heavy weight of the muffler.

A second technician is required for the following work steps.

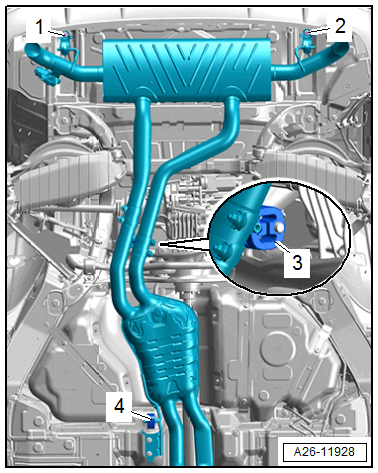

-- Disengage the retaining loop -3 and 4-.

Courtesy of AUDI

-- Remove the bolt -1 and 2- and the muffler.
