Exhaust Pipes/Mufflers, Disconnecting

Special tools and workshop equipment required

• Chain Pipe Cutter:VAS6254

• A separating point has been provided in the connecting pipe for individual replacement of the center or rear muffler.
• The separating point is marked by an indentation around the circumference of the exhaust pipe.

Procedure

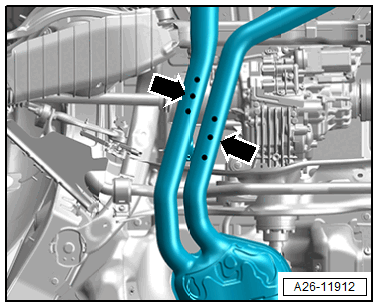

-- Separate the exhaust pipes at a right angle at the separating points -arrow- using a :VAS6254  .

Courtesy of AUDI

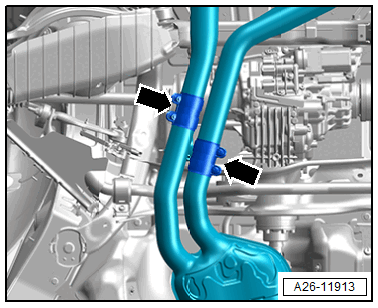

-- Position the clamping sleeves -arrows- in the center of the separation cut and tighten the nuts. Refer to Figure).

Courtesy of AUDI

-- Install the exhaust system without tension. Refer to EXHAUST SYSTEM, INSTALLING WITHOUT TENSION .

Tightening Specifications

• Refer to OVERVIEW - MUFFLER
