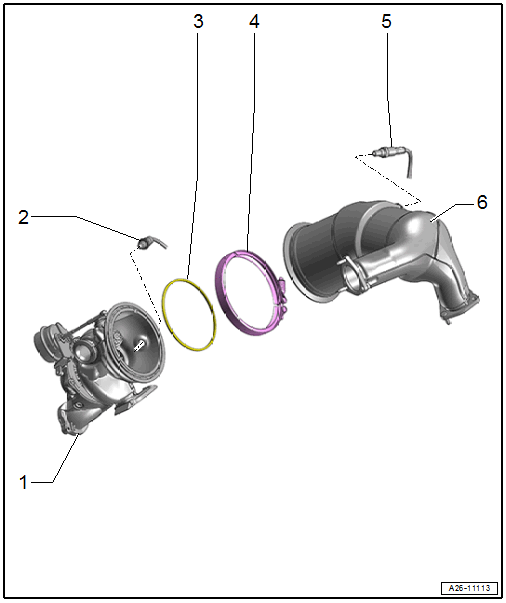

Overview - Emissions Control System
WARNING: This page is about a different car, the 2024 Audi SQ5 and 2023 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Turbocharger
- Overview. Refer to OVERVIEW - TURBOCHARGER .
- Heated Oxygen Sensor -G39-
- Overview. Refer to OVERVIEW - HEATED OXYGEN SENSOR .
- Seal
- Always replace after removing.
- Screw-Type Clamp
- 7 Nm
- Always replace after removing.
- Installation position. Refer to Fig 2.
- Oxygen Sensor after Catalytic Converter -G130-
- Overview. Refer to OVERVIEW - HEATED OXYGEN SENSOR .
- Catalytic Converter
- Removing and installing. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING .
Installation Position of the Catalytic Converter Screw-Type Clamp:
- Angle -α- = 90° ± 15°.
