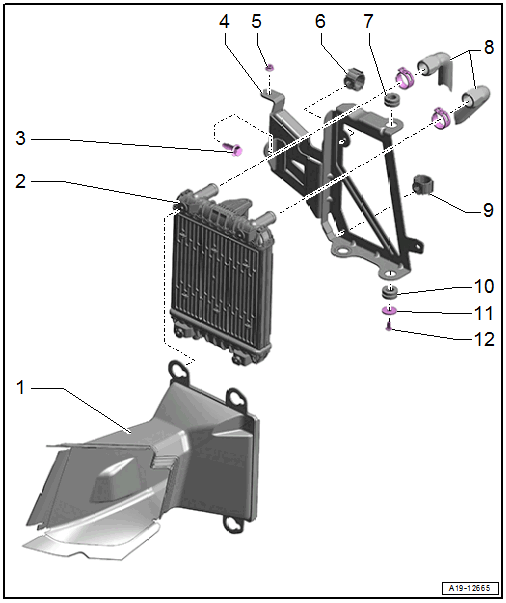

Overview - Auxiliary Radiator
WARNING: This page is about a different car, the 2024 Audi SQ5 and 2023 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
- Air Duct
- Auxiliary Cooler
- Removing and installing. Refer to AUXILIARY RADIATOR, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bracket
- For auxiliary radiator
- Nut
- 9 Nm
- Clip
- Rubber Bushing
- Coolant Hoses
- Clip
- Rubber Bushing
- For auxiliary radiator
- Washer
- Bolt
- 4.5 Nm
