Auxiliary Radiator, Removing And Installing: Removing

-- Disconnect the connector -3- for the Charge Air Pressure Sensor -G31-.

Courtesy of AUDI

-- Loosen the hose clamp -1- and remove the air duct pipe.

-- Remove the left front wheel housing liner and left wheel spoiler. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

-- Loosen the hose clamp -1- free up the charge air cooler and remove the left air duct pipe from the charge air cooler.

Courtesy of AUDI

-- Unclip the air duct -1- in direction of -arrow- and leave in the installation position.

Fig 1: Identifying Front Bumper Cover

Courtesy of AUDI

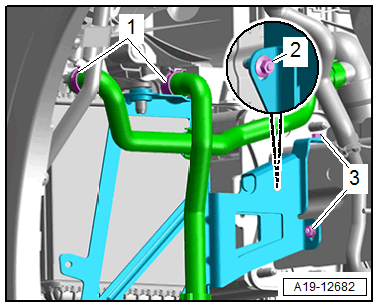

-- Clamp off the coolant hoses -1- with the :3094  remove and free up.

Courtesy of AUDI

-- Remove the nuts -3- and bolts -2- and remove the auxiliary radiator with the bracket.

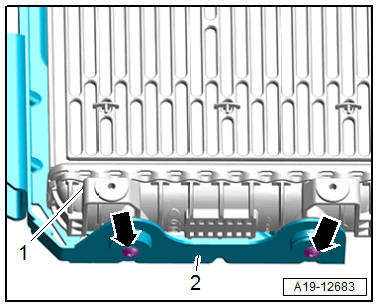

-- Remove the bolts -arrows- and remove the auxiliary radiator -1- from the bracket -2-.

Courtesy of AUDI
