Fan Shroud, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the front bumper cover. Refer to FRONT - BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the front noise insulation. Refer to NOISE INSULATION .

-- Remove the upper air duct -item ) OVERVIEW - RADIATOR/RADIATOR FAN - Upper Air Duct from the radiator. Refer to Removing - RELEASE THE LEFT AND RIGHT CATCHES WITH THE :T10118 IN DIRECTION OF -ARROWS- AND REMOVE THE UPPER AIR DUCTS -1- AND SIDE AIR DUCTS -2-. (SHOWN WITH THE RADIATOR REMOVED). .

-- Remove the headlamps. Refer to HEADLAMP, REMOVING AND INSTALLING .

-- Remove the lower pressure pipe. Refer to LOWER PRESSURE PIPE, REMOVING AND INSTALLING .

-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .

-- Place the container of the :VAS5014 or the :VAS6208 underneath.

Fig 1: Engine Coolant Temperature Sensor on Radiator Outlet -G83- Component Location

Courtesy of AUDI OF AMERICA, LLC

-- Release and disconnect the connector -1- from the Engine Coolant Temperature Sensor on Radiator Outlet -G83-.

-- Lift the clamp -3-.

-- Remove the right coolant hose at the bottom of the radiator and drain the rest of the coolant.

NOTE:

Ignore -2-.

CAUTION:

There is a risk of hand injury if the radiator fan turns on by itself.

- Do not reach into the radiator fan when disconnecting the connector.

-- Release and disconnect the connectors -1 and 2- for the radiator fan and free up the wire.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- on the left and right.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -5- and tilt the hood release bracket -1- upward.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -2-4 and 6-9-.

-- Lift the clips -1 and 2-, remove the coolant connection from the radiator and free it up.

Courtesy of AUDI OF AMERICA, LLC

-- Release the left and right catches in direction of -arrows- and remove the retaining pin -1- for the radiator upward.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fan shroud from the radiator. To do this, press the locking tabs in direction of -arrow A- on the left and right side. Lift the fan shroud upward in direction of -arrow B-.

Courtesy of AUDI OF AMERICA, LLC

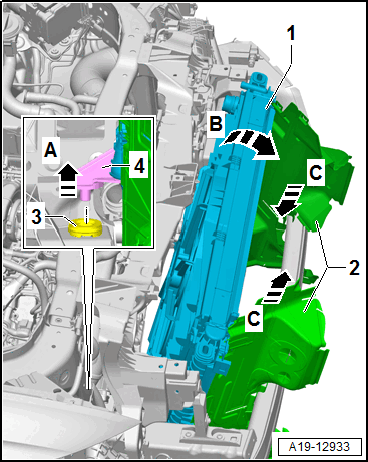

-- Lift the bracket -4- for the radiator module -1- out of the lower bearings -3- in the direction of -arrow A-.

Courtesy of AUDI OF AMERICA, LLC

-- Tilt the radiator module -1- forward in direction of -arrow B- while pinching the side air ducts -2- carefully inward in direction of -arrow C-.

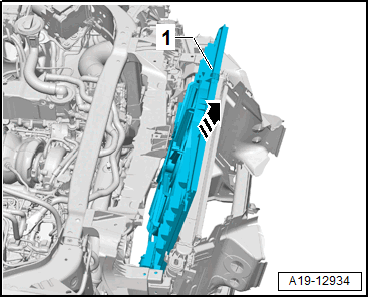

-- Lift the fan shroud -1- upward in direction of -arrow- and out.

Courtesy of AUDI OF AMERICA, LLC
