Fan Shroud, Removing And Installing: Installing
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and Note The Following:

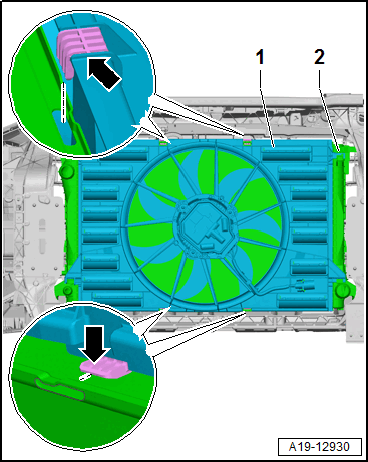

- The guides -arrows- for the fan shroud -1- must be attached in the upper and lower recesses on the radiator -2-
- Secure all hose connections with hose clamps that match the ones used in series production. Refer to the Parts Information.
- Used coolant cannot be used again.
-- Connect the plug with the connector coupling. Refer to Figure.
-- Fill with coolant. Refer to COOLANT, DRAINING AND FILLING .
