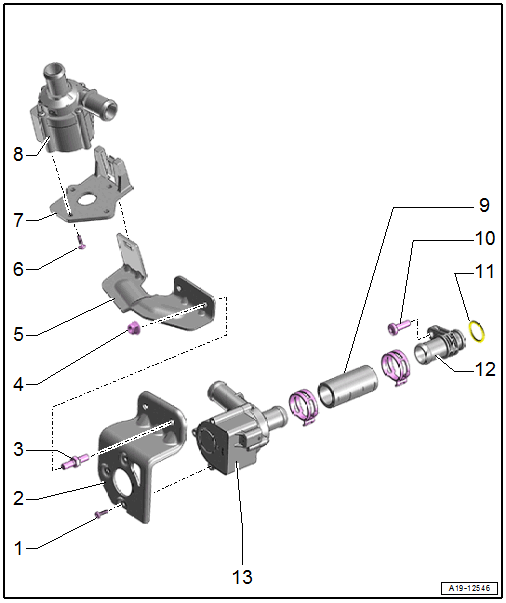

Overview - Electric Coolant Pump
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 1.5 Nm
- Bracket
- For After-Run Coolant Pump -V51-
- Depending on the version with impact absorber
- Bolt
- 9 Nm
- Nut
- 9 Nm
- Bracket
- For the Coolant Recirculation Pump -V50-
- Bolt
- 1.5 Nm
- Bracket
- For the Coolant Recirculation Pump -V50-
- Coolant Recirculation Pump -V50-
- For equipment versions without parking heater
- Removing and installing. Refer to Coolant Recirculation Pump -V50-, REMOVING AND INSTALLING .
- Coolant Hose
- Bolt
- 9 Nm
- O-Ring
- Replace after removing.
- Connection
- After-Run Coolant Pump -V51-
- Removing and installing. Refer to After-Run Coolant Pump -V51-, REMOVING AND INSTALLING .
