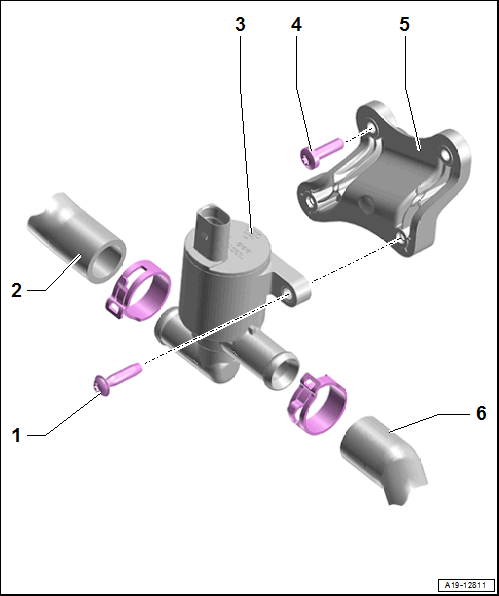

Overview - Coolant Valves
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 9 Nm
- Coolant Hose
- Transmission Fluid Cooling Valve -N509-
- Removing and installing. Refer to Transmission Fluid Cooling Valve -N509-, REMOVING AND INSTALLING .
- Bolt
- 9 Nm
- Bracket
- For Transmission Fluid Cooling Valve -N509-
- Coolant Hose
