Transmission Fluid Cooling Valve -N509-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

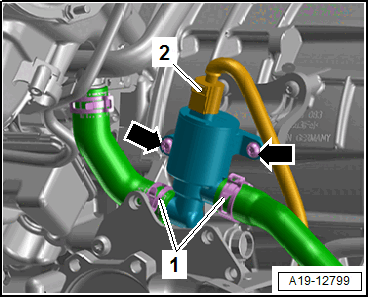

-- Release and disconnect the connector -2-.
-- Remove the bolts -arrows-.
-- Clamp off the coolant hoses using the :3094 .
-- Loosen the hose clamps -1- and remove the coolant hoses.
