Overview - Coolant Pipes: Notes

WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

The arrows on the coolant pipes and ends of coolant hoses must align.

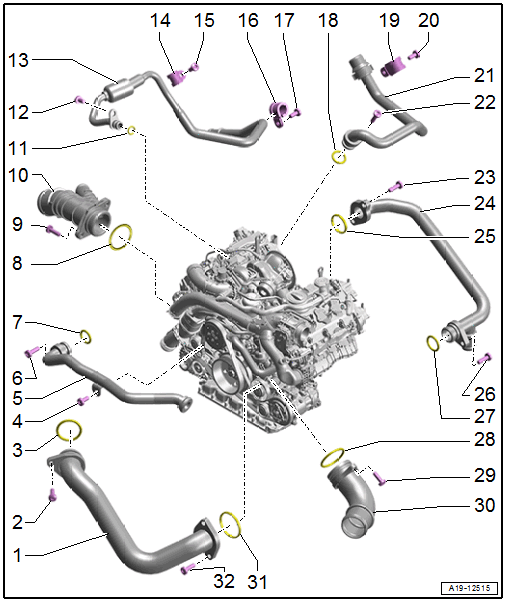

Fig 1: Exploded View Of Coolant Pipes

Courtesy of AUDI OF AMERICA, LLC

Left Front Coolant Pipe
- Removing and installing. Refer to LEFT FRONT COOLANT PIPE, REMOVING AND INSTALLING .
Bolt
- 9 Nm
O-Ring
- Replace after removing.
Bolt
- 9 Nm
Front Coolant Pipe
- Replace after removing.
- Removing and installing. Refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .
Bolt
- 9 Nm
O-Ring
- Replace after removing.
O-Ring
- Replace after removing.
Bolt
- 9 Nm
Connection
O-Ring
- Replace after removing.
Bolt
- 9 Nm
Large Right Rear Coolant Pipe
- Removing and installing. Refer to LARGE RIGHT REAR COOLANT PIPE, REMOVING AND INSTALLING .
Clamp
Bolt
- 9 Nm
Clamp
Bolt
- 9 Nm
O-Ring
- Replace after removing.
Clamp
Bolt
- 9 Nm
Small Right Rear Coolant Pipe
- Removing and installing. Refer to SMALL RIGHT REAR COOLANT PIPE, REMOVING AND INSTALLING .
Bolt
- 9 Nm
Bolt
- 9 Nm
Rear Left Coolant Pipe
- Removing and installing. Refer to LEFT REAR COOLANT PIPE, REMOVING AND INSTALLING .
Seal
- Replace after removing.
Bolt
- 9 Nm
O-Ring
- Replace after removing.
O-Ring
- Replace after removing.
Bolt
- 9 Nm
Connection
Seal
- Replace after removing.
Bolt
- 9 Nm
