Small Right Rear Coolant Pipe, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .
-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

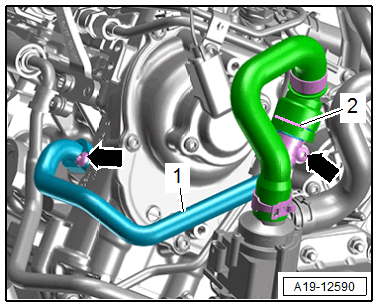

-- Lift the clamp -2- and remove the coolant hose.
-- Remove the bolts -arrows- and the coolant pipe -1-. (Shown on a vehicle without a parking heater.)
