Front Coolant Pipe, Removing And Installing: Removing
WARNING: This page is about a different car, the 2022 Audi Q8, 2021 Audi Q8, 2020 Audi Q8, and 2019 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING .
-- Remove the upper air duct pipe. Refer to UPPER AIR DUCT PIPE, REMOVING AND INSTALLING .

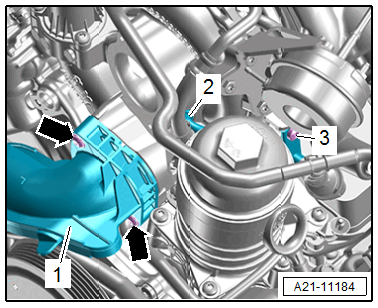

-- Remove the bolts -arrows-.
-- Loosen the hose clamp on the right charge air cooler and remove the charge air hose from the lower air duct pipe -1-.
-- Remove the lower air duct pipe -1-.
-- Remove the generator ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .
-- Position the :T10172A with :T10172/10 on the belt pulley -1-.
-- Remove the bolts -2-.
-- Remove the belt pulley -1-.
-- Remove the bolts -arrows-.
-- Remove the front coolant pipe -1- from the right cylinder head and from the shut-off valve.
