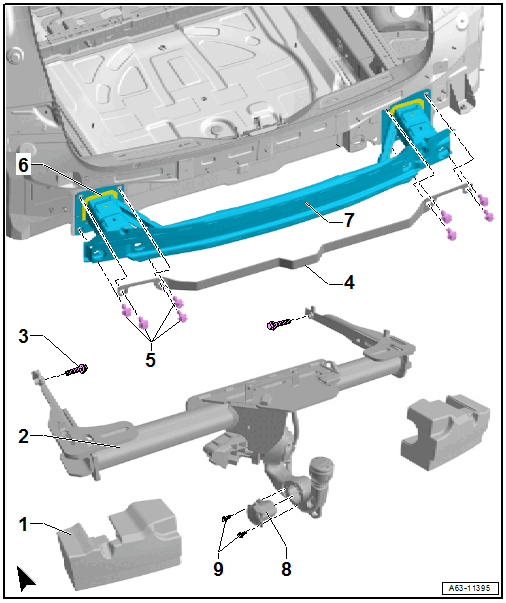

Overview - Impact Member
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
- Filler Piece
- Impact Member
- For vehicles with a trailer hitch
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, Q5 WITHOUT HIGH-VOLTAGE SYSTEM WITH TRAILER HITCH .
- Bolt
- Crossmember
- Equipped on some models
- Bolt
- Replace after removing
- Tightening specification. Refer to Fig 2.
- Foam Seal
- Impact Member
- For vehicles without a trailer hitch
- Removing and Installing. Refer to IMPACT MEMBER, REMOVING AND INSTALLING, WITHOUT TRAILER HITCH .
- Socket
- Removing and Installing. Refer to TRAILER HITCH SOCKET, REMOVING AND INSTALLING - VERSION 1 .
- Bolt
- Quantity: 2
- 3.5 Nm

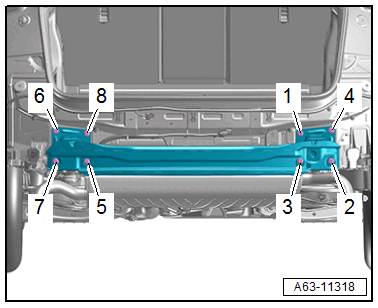

Impact Member - Tightening Specification and Sequence
-- Tighten the bolts and nuts gradually in the sequence shown.
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 8- | 50 Nm |
| 2. | -1 to 8- | 45° |

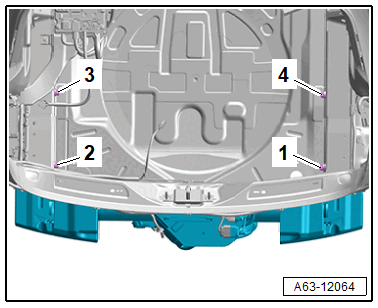

Q5 without high-voltage system: impact member with trailer hitch - tightening specification and sequence.
-- Tighten the bolts in steps in the sequence shown.
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 4- | 70 Nm |
| 2. | -1 to 4- | 180° |

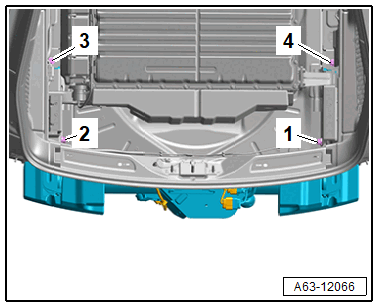

Q5 with high-voltage system: impact member with trailer hitch - tightening specification and sequence.
-- Tighten the bolts in steps in the sequence shown.
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 4- | 60 Nm |
| 2. | -1 to 4- | 90° |
