Overview - Bumper Cover, SPORTBACK

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

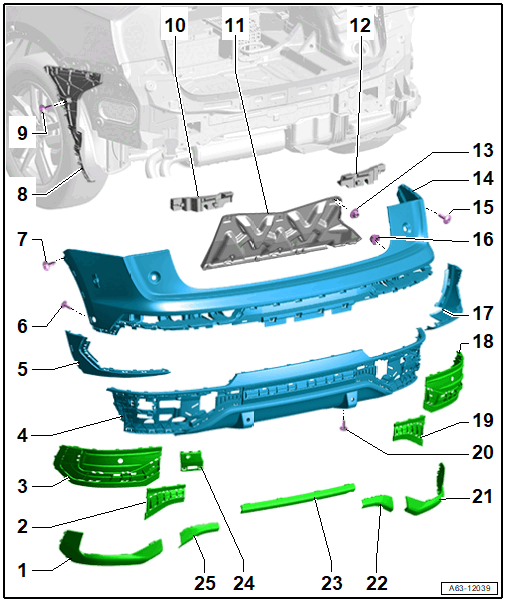

Fig 1: Exploded View Of Bumper Cover, Sportback

Courtesy of AUDI

Trim Molding
- For the left trim
- Removing and Installing. Refer to SIDE TRIM, REMOVING AND INSTALLING THE TRIM MOLDING, SPORTBACK .
Cover
- Left
- For the tail lamp bolt
Trim
- Left
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, SPORTBACK .
Bumper Cover Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bumper Cover Side Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, SPORTBACK .
Bolt
- Quantity: 4
- 2 Nm
Bolt
- 2 Nm
Mount
- Side
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, SIDE .
Bolt
- Quantity: 4
- Tightening sequence. Refer to Figure.
Filler Piece
- For the tail lamp
Mount
- Lower
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING, BOTTOM .
Filler Piece
- For the tail lamp
Nut
- Quantity: 3
- 4 Nm
Bumper Cover Upper Section
- Removing and Installing. Refer to BUMPER COVER UPPER SECTION, REMOVING AND INSTALLING .
- Bumper Cover, Removing and Installing. Refer to BUMPER COVER, REMOVING AND INSTALLING .
Bolt
- Quantity: 2
- 1.5 Nm
Nut
- Quantity: 4
- 4 Nm
Bumper Cover Side Lower Section
- Removing and Installing. Refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, SPORTBACK .
Trim
- Right
- For the bumper cover
- Removing and Installing. Refer to BUMPER COVER TRIM, REMOVING AND INSTALLING, SPORTBACK .
Cover
- Right
- For the tail lamp bolt and towing eye
Bolt
- Quantity: 5
- 2 Nm
Trim Molding
- For the right trim
- Removing and Installing. Refer to SIDE TRIM, REMOVING AND INSTALLING THE TRIM MOLDING, SPORTBACK .
Trim Molding
- Right Cover
- Removing and Installing. Refer to TRIM MOLDING COVER, REMOVING AND INSTALLING, SPORTBACK .
Trim Molding
- Center
- Removing and Installing. Refer to CENTER TRIM MOLDING, REMOVING AND INSTALLING, SPORTBACK .
Bracket
- For the parking aid sensor
- Removing and Installing. Refer to PARKING AID SENSOR BRACKET, REMOVING AND INSTALLING .
Trim Molding
- Left Cover
- Removing and Installing. Refer to TRIM MOLDING COVER, REMOVING AND INSTALLING, SPORTBACK .
