Cover Strip, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Vehicles with TDI engine, right side of the vehicle: remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

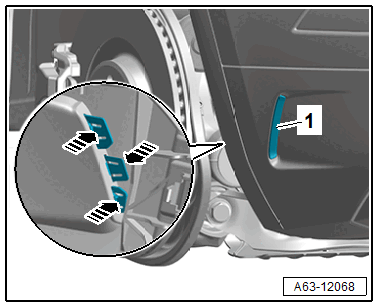

-- Release the retainers in the direction of -arrows- and remove the cover strip -2- from the bumper cover -1-.

GWWA63-12068Courtesy of AUDI
