Bumper Cover, Removing And Installing: Removing

-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

-- Open the luggage compartment side trim panel cover.

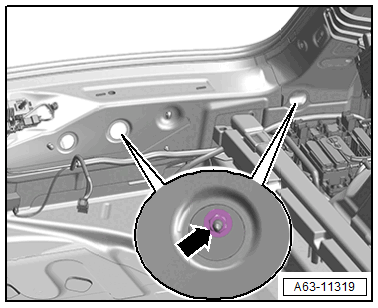

-- Remove the nuts -arrow- using the Body Socket:T40078  .

Courtesy of AUDI

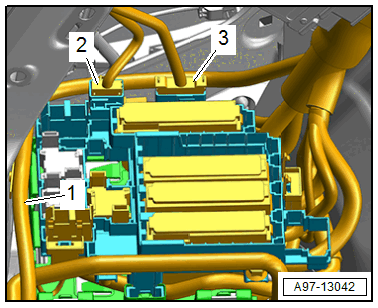

-- Disconnect the connectors -2 and 3-.

Courtesy of AUDI

-- Free up the wiring harness -1-.

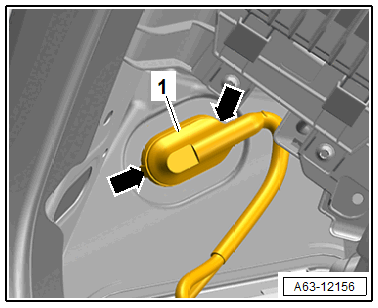

-- From product improvement/Sportback: release the retainers from the inside -arrows- and push the grommet -1- toward the outside.

Courtesy of AUDI

-- Remove the rear wheel cover. Refer to WHEEL COVER, REMOVING AND INSTALLING, REAR .

Courtesy of AUDI

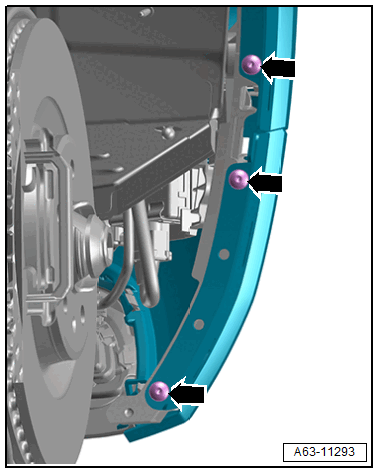

-- Remove the bolts -arrows-.

-- Remove the bolts -arrows-.

Courtesy of AUDI

TIP:

• On vehicles with trailer hitch the trailer hitch must be retracted.
• The quantity of bolts -arrows- varies depending on the model.

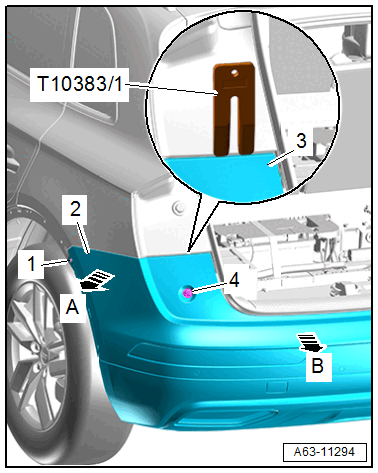

-- Remove the bolts -1 and 4-.

Courtesy of AUDI

-- Using the Wedge Set:T10383/1  unclip the bumper side section -3- from the body.

-- Disengage the side piece -2- on the side panel outward in the direction of -arrow A- and remove the bumper cover slightly toward the rear in the direction of -arrow B- with the help of a second technician.

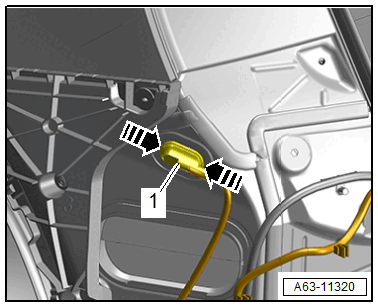

-- Before product improvement: release the catches from the outside in the direction of -arrows- and push the grommet -1- inward.

Courtesy of AUDI

-- Guide out the wiring harness with the grommet at the body pass through.

-- Lay the bumper cover on a soft surface.
