Center Trim Molding, Removing And Installing, SPORTBACK: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the cap. Refer to TAIL LAMP COVER, REMOVING AND INSTALLING .

-- Remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .

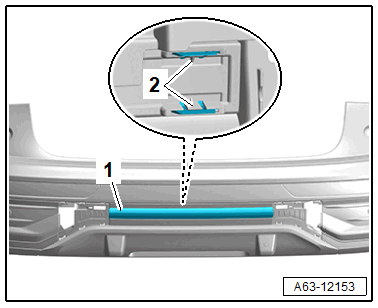

-- Release the retainers -2- and remove the trim molding from the bumper cover.

GWWA63-12153Courtesy of AUDI
